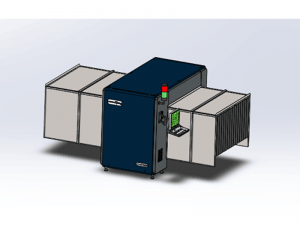

TE-XS140100 Lifting X-ray Baggage Scanner
Scanning image
Technical Parameters：
|
General Specification |
||
| Tunnel Size | 1400mm(width) ×1000mm(height) | |
| Conveyor Speed | 0.6-0.9m/s | |
| Conveyor Height | Customized | |
| Wire Resolution | 40AWG（0.0787mm of wire） | |
| Spatial Resolution | horizontal Ф1.0mm vertical Ф1.0mm | |
| Steel Penetration | 38mm | |
| Monitor | 17-inch color monitor with resolution:1280×1024 | |
| X-ray Generator | ||
| Anode Voltage | 200w,160kv | |
| Cooling/Run Cycle | sealed oil cooling/ 100% | |
| Image Processing System | ||
| Image Enhancement Features | color/black & white image ,organic and inorganic elimination ,alterable absorption, super-enhancement, negative mode, high/low energy penetrability, pseudo color etc | |
| Image Resolution | organics: orangeinorganic: bluemixture and light metal: green | |
| Radiation Safety | ||
| Radiation Leakage | less than 1.5μGy /h ( 5cm away from shell)comply with all domestic and international health and radiation safety standards | |
| Film Safety | in accordance with ASA/ISO1600 film safe standard | |
| Scanning system | ||
| AI camera/ Industry camera, Top/side/Multi scanning | ||
| Indicator Functions | ||
| Three-colors indicators:Green: on: working ; blink: pauseYellow: on: trouble
Red: on: emergency on /pause Blue: on: direct mode |
||
| Installation Data | ||
| External Dimension | 1125mm(length) ×2226mm(width) ×1660mm(height) | |
| Packing Size | 1300mm(length) ×2500mm(width) ×1900mm(height) | |
| Weight | 900Kg | |
| Operation Voltage | AC220V(-15%~+10%) 50±3Hz | |
| Power Consumption | 1.5kVA | |
| Operation Temperature | 0℃±3℃～+40℃±2℃ | |
| Storage Temperature | -40℃±3℃～＋60℃±2℃ | |
| Relative Humidity | 30%～95%(non-condensing) | |
Application
X-ray baggage scanner and Walk-through metal detector at Binhai Railway Station
X-ray baggage scanner and Walk-through metal detector at Xinjiang high speed rail station
X-ray baggage scanner and Walk-through metal detector at Changsha west but station
X-ray baggage scanner and Walk-through metal detector in Shopping Mall
X-ray baggage scanner and Walk-through metal detector at the CICA Summit
X-ray baggage scanner and Walk-through metal detector in the Suzhou Library
